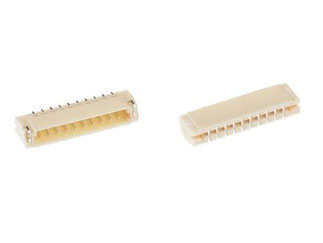

JST | SM10B-XSRS-ETB(LF)(SN)

Manufacturer Part #

SM10B-XSRS-ETB(LF)(SN)

10 Position XSR HEADER SMT SIDE CONNECTOR

ECAD Model:
Mfr. Name: JST
Standard Pkg:
Product Variant Information section
Date Code: 2340
Product Specification Section
JST SM10B-XSRS-ETB(LF)(SN) - Technical Attributes
Attributes Table
No of Positions: 10
Pitch: 0.6 mm
Style/Orientation: Right Angle Header/Plug
Termination: Solder
Operating Temp Range: -25°C to +85°C
Voltage Rating: 30V
Current Rating: 0.2A
Contact Plating: Tin
Material: Polyamide
No of Rows: 1
Gender: Male
Type: Shrouded Header
Mating Type: Friction Lock
Color: Natural
Insulation Resistance: 100MΩ
Mounting Method: Surface Mount
Pricing Section
Global Stock:
3,500
USA:
3,500
On Order:
0
Factory Stock:Factory Stock:
0
Factory Lead Time:
16 Weeks
Minimum Order:
3500
Multiple Of:
3500
Total
$1,697.50
USD
Quantity
Unit Price
3,500+
$0.485
