Manufacturer Part #

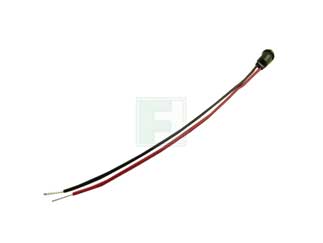

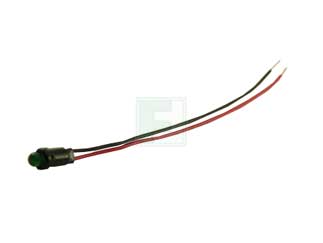

SSI-LXH600GD-150

Green 5 mm 60° Diffused 30 mcd 2.2 V LED Panel Mount Indicator - L487

Datasheet
ECAD Model: Convert this file for your ECAD tool by downloading the free Library Loader. Learn more about ECAD model.
Mfr. Name:	Lumex
Standard Pkg:	Product Variant Information section Available Packaging Bag BagSelected Variant Qty: 100+ / Web Price: $0.575 / Stock: 0 Qty: 100+$0.575 Stock: 0 Package Qty: 100 per Bag Mounting Method: Panel Mount
Date Code:

Technical Attributes

No of LEDs:	1
Color:	Green
Lens Type:	Diffused
Forward Voltage:	2.2V
Forward (Drive) Current:	20mA
Intensity:	30mcd
Viewing Angle:	60°
Wavelength:	565nm
Rated Power:	105mW
Operating Temp Range:	-40°C to +85°C
Storage Temperature Range:	-40°C to +85°C
Dimension:	H 17.8mm x D 7.3mm
Mounting Method:	Panel Mount

Expand List

Collapse List

Features & Applications

The SSI-LXH600GD-150 is a 2.2 V 5 mm Green Diffused 30 mcd LED/Panel Indicators Back panel QuasarBrite LEDs.

Features:

State-of-the-Art, LED Technology
Choice of Colors and Lens Finishes
Bi-Color Styles Optional
Insulated Lead Lenghts Optional

Parameters:

Peak Forward Current : 150 mA
Steady Current : 25 mA
Power Dissipation : 105 mW
Derate from 25°c : -1.2 mW/°C
Operating temperature : -40°C to + 85°C
Peak wave length : 565 nm
Forward voltage : 2.2 V to 2.6 V
Reverse Voltage : 5.0 V
Emitted color : Green
Epoxy Lens Finish : Green Diffused

Applications:

Front Panel Status Indicators
Alarm/Warning Indicators
Front Panel Circuit Fault Indicators
Instrument Control Panels
Medical Diagnostics Indicators

Global Stock:

0

USA:

0

Factory Stock:

0

Factory Lead Time:

18 Weeks

Quantity

Web Price

100

$0.575

300

$0.495

1,000

$0.475

2,000

$0.47

4,000+

$0.46
