Stock : 1 093

Sur commande :Order inventroy details 12 060
Stock d'usine :Stock d'usine : 0
Délai d'usine : N/A
Commande minimale : 1
Multiples de : 1
Quantité Prix Internet
1 $3.48
25 $3.06
50 $2.97
100 $2.89
250+ $2.79
Total :

3,48 $

USD
Attributs
Attributes Table
Type RJ-45
Style Shielded Jack
No of Positions 12
No of Rows 1
Shielding Yes
Color Green / Yellow
Contact Material Phosphor Bronze
Material Finish Gold
Orientation Straight
Operating Temp Range 0°C to 70°C
Fonctionnalités et applications

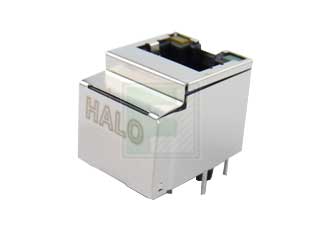

The HFJV1-2450-L12RL is a part of FastJack Series 1x1 RJ45 Straight LED Green/Yellow 10/100BASE-TMagnetic Modular Jack connectors.

It has an Operating temperature ranges b/w 0 °C to 70 °C and are available for most 10/100BASE-TX IC’s.

Features:

  • Electrical Specifications @ 25 °C
  • Operating Temp: 0 to +70 °C
  • Isolation Voltage: 1,500 Vrms
  • OCL (100KHz, 0.1 Vrms, 8 mA): 350 uH min
  • CMR (0.1-100 MHz): -40 dB typ
  • Insertion Loss (0.1-100 MHz): -1.1 dB Max
  • Crosstalk (0.1-100 MHz): -[33-20log(F/100Mhz)]dB typ
