Référence fabricant

484-10SURT/S530-A3

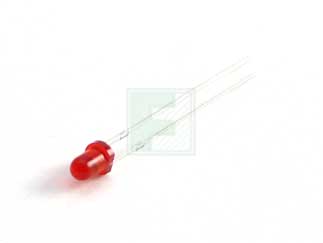

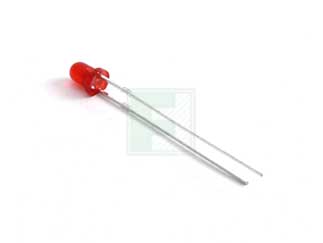

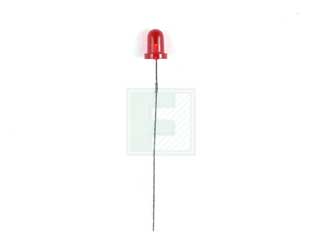

Hyper Red 3 mm 130° Tinted 20 mcd 2 V Through Hole LED Lamp

Modèle ECAD:
Nom du fabricant: Everlight
Emballage standard:
Product Variant Information section
Code de date: 1808
Product Specification Section
Everlight 484-10SURT/S530-A3 - Caractéristiques techniques
Attributes Table
No of LEDs: 1
Color: Red
Lens Type: Tinted
Forward Voltage: 2V
Forward (Drive) Current: 25mA
Intensity: 20mcd
Viewing Angle: 130°
Wavelength: 632nm
Rated Power: 60mW
Operating Temp Range: -40°C to +85°C
Storage Temperature Range: -40°C to +100°C
Dimension: H  3.8mm x D  3.6mm
Méthode de montage : Through Hole
Fonctionnalités et applications

The 484-10SURT/S530-A3 is a Very Wide Angle Type LED Lamp.

The 42-21 SMD LED is much smaller than lead frame type components, thus enable smaller board size, higher packing density, reduced storage space and finally smaller equipment to be obtained Besides, lightweight makes them ideal for miniature applications etc

Features:

  • Choice of various viewing angles
  • Available on tape and reel.
  • Reliable and robust
  • Pb free
  • The product itself will remain within RoHS compliant version.

Applications:

  • TV set
  • Monitor
  • Telephone
  • Computer
Voir plus...
Pricing Section
Stock global :
8
États-Unis:
8
Sur commande :
0
Stock d'usine :Stock d'usine :
0
Délai d'usine :
14 Weeks
Commande minimale :
1
Multiples de :
1
Total
0,06 $
USD
Quantité
Prix unitaire
1
$0.063
400
$0.0613
1 000
$0.0598
2 500
$0.0583
5 000+
$0.0555
