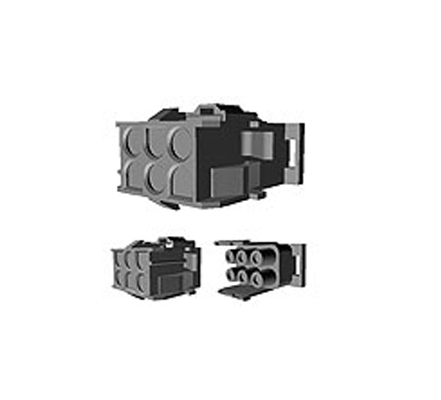

Image for illustration purposes only,
refer to technical specifications

Manufacturer Part #

770030-1

Universal MATE-N-LOK II 15 Position Positive Lock Receptacle Housing Connector

770030-1 Datasheet 770030-1 Documentation Application Note Product Drawing
ECAD Model: Convert this file for your ECAD tool by downloading the free Library Loader. Learn more about ECAD model.
Mfr. Name:	TE Connectivity
Standard Pkg:	Product Variant Information section Available Packaging Package Qty: 250 per Box
Date Code:	2008

TE Connectivity 770030-1 - Technical Attributes

No of Positions:	15
Contact Termination:	Crimp Terminal
Style/Orientation:	Receptacle Housing
Material:	Nylon
Mating Type:	Positive Lock

Features & Applications

The 770030-1 is a Universal MATE-N-LOK II 15 Position Positive Lock Receptacle Housing Connector. AMP Soft Shell Pin and Socket connectors provide a highly reliable and economic means of grouping multiple-lead connections in today's computer, computer/peripheral equipment, business machines, entertainment centers, appliances and other sophisticated commercial equipment.

The electrical connector is an integral component in these applications. They also offer worldwide application approval because of their reliability and economy. Electrical functions have increased in complexity and new designs continually call for the maximum use of space. The Soft Shell Pin and Socket family of connectors offers the design and features to answer these modern industry requirements.

Product Type Features:

Product Type = Connector
Product Line = Universal MATE-N-LOK II
Connector Type = Housing
Mount = Free Hanging or Panel
Color = White
Mating Retention Type = Positive Lock
Row-to-Row Spacing (mm [in]) = 6.35 [0.250]
Centerline (mm [in]) = 6.35 [0.250]
Number of Positions = 15

Applications:

ATM Machines
Inkjet
MFP/LBP
Networking (Communications)
Power (Multi-User)
Projector
Scanner

Mating Products:

770023-1
770043-1
770044-1
350736-1
1-350848-5
