Manufacturer Part #
HD8008NL

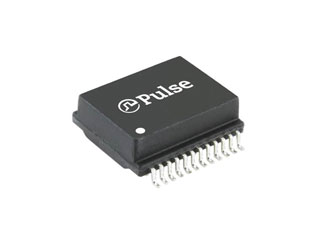

Telecom Transformer 1:1 24 Terminal Gull Wing SMD
| | |||||||||||
| | |||||||||||
| Mfr. Name: | Pulse Electronics | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:35 per Tube Mounting Method:Surface Mount | ||||||||||
| Date Code: | |||||||||||
Product Specification Section
Pulse Electronics HD8008NL - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=HD8008NL&field4=Pulse Electronics&field18=https://p1na.futureelectronics.com/p/3137762
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=HD8008NL&field4=Pulse Electronics&field18=https://p1na.futureelectronics.com/p/3137762
Pulse Electronics HD8008NL - Technical Attributes
Attributes Table
| Type: | Module |
| Inductance: | 100µH |
| Output Voltage: | 57V |
| Output Current: | 600mA |
| Primary:Secondary - Turns Ratio: | 1:1 |
| Insertion Loss: | 3dB |
| Isolation Voltage-RMS: | 1500V |
| Operating Temp Range: | 0°C to 70°C |
| Storage Temperature Range: | -20°C to +125°C |
| Length: | 13.7mm |
| Width: | 12.2mm |
| Height - Max: | 5.97mm |
| Mounting Method: | Surface Mount |
Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Lead Time:
8 Weeks
Quantity
Unit Price
35
$4.65
70
$4.59
105
$4.56
140
$4.54
175+
$4.48
Product Variant Information section
Available Packaging
Package Qty:
35 per Tube
Mounting Method:
Surface Mount
