Manufacturer Part #
AZ8-1CH-5DSE

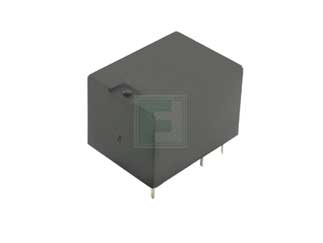

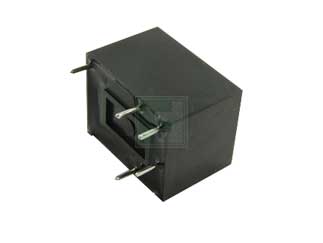

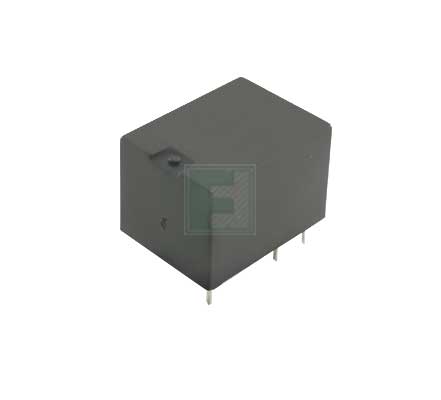

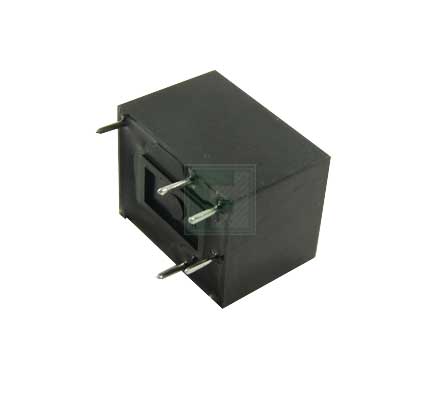

AZ8 Series 6 A SPDT 5 VDC PCB Mount Medium Duty Sealed Miniature Power Relay
| | |||||||||||
| | |||||||||||
| Mfr. Name: | American Zettler | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:20 per Tube Mounting Method:PCB Mount | ||||||||||
| Date Code: | |||||||||||
Product Specification Section
American Zettler AZ8-1CH-5DSE - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
American Zettler AZ8-1CH-5DSE - Technical Attributes
Attributes Table
| Relay Type: | Power |
| Coil Type: | Non-Latching |
| Contact Form: | SPDT (1 Form C) |
| Nominal Coil Voltage: | 5V |
| Contact Current-Max: | 6A |
| Coil Resistance: | 80Ω |
| Switching Voltage: | 150V |
| Contact Material: | Silver Nickel (AgNi) |
| Operating Temp Range: | -55°C to +90°C |
| Insulation Resistance: | 1000MΩ |
| Height - Max: | 14.35mm |
| Termination Style: | PC Pin |
| No of Terminals: | 5 |
| Mounting Method: | PCB Mount |
