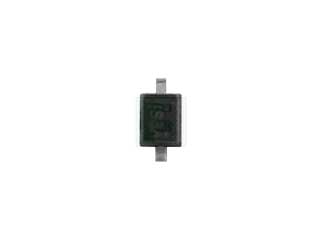

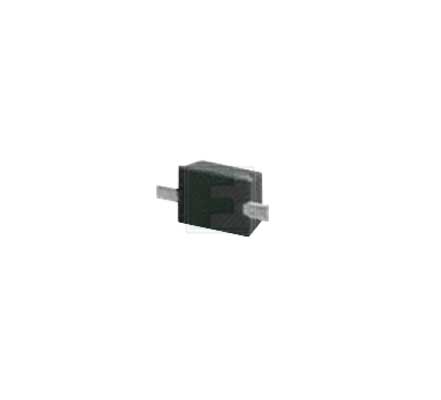

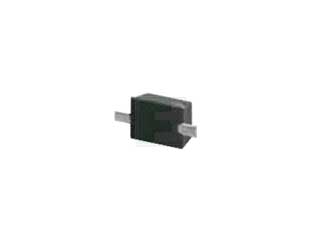

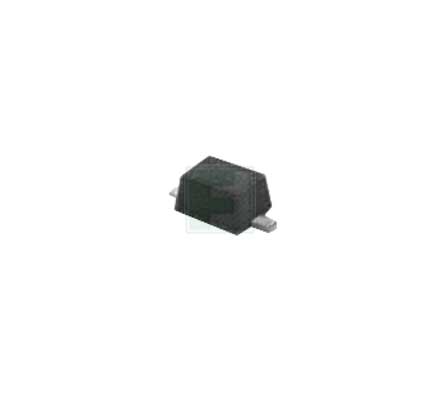

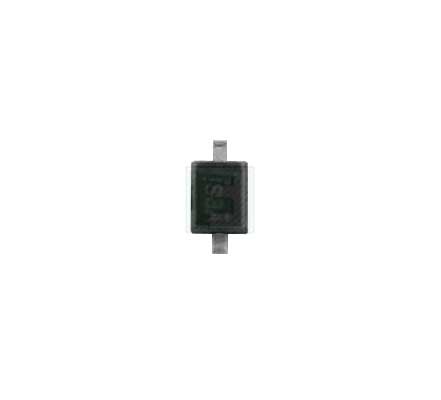

onsemi | MM5Z4V7T1G

The MM5Z4V7 series of Zener diodes is packaged in a SOD-523 surface mount package. They are designed to provide voltage regulation protection and are especially attractive in situations where space is at a premium. They are well suited for applications such as cellular phones, hand held portables, and high density PC boards.

Key Features:

• Standard Zener Breakdown Voltage Range - 2.4 V to 75 V
• Steady State Power Rating of 200 mW
• Small Body Outline Dimensions: 0.047" x 0.032" (1.20 mm x 0.80 mm)
• Low Body Height: 0.028" (0.7 mm)
• ESD Rating of Class 3 (>16 kV) per Human Body Model
• Pb-Free Packages are Available

Characteristics:

• Case: Void-free, transfer-molded, thermosetting plastic
• Epoxy Meets UL 94 V-0
• Qualified Max Reflow Temperature: 260°C
• Device Meets MSL 1 Requirements
• Leads: 100% Matte Sn (Tin)
• Polarity: Cathode Indicated by Polarity Band

Applications:

• Cellular phones, hand held portables, and high density PC boards, where space is at a premium
