Manufacturer Part #
BD33KA5WF-E2

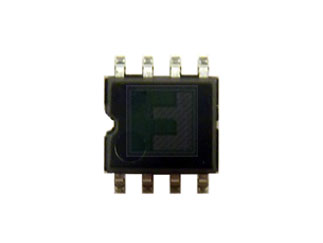

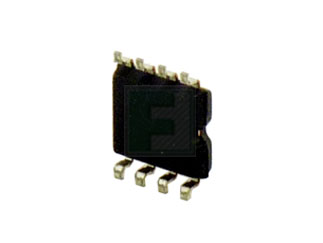

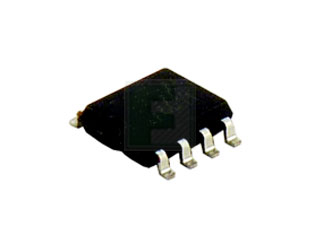

BD00KA5W Series 500 mA 3.3 V Output LDO Regulator with Shutdown Switch - SOP-8
| | |||||||||||
| | |||||||||||
| Mfr. Name: | ROHM | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:2500 per Reel Package Style:SOP-8 Mounting Method:Surface Mount | ||||||||||
| Date Code: | |||||||||||
ROHM BD33KA5WF-E2 - Product Specification
Shipping Information:
ECCN:
PCN Information:
At ROHM Electronics Philippines, Inc., LSI production building will be relocated to a new building in order to avoid risks associated with the aging of the existing building (Building D) and to ensure a stable supply.There are no 4Ms-related changes in the products which relocated to the new production building. Therefore, we believe that product quality is equivalent.
Part Status:
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=BD33KA5WF-E2&field4=ROHM&field18=https://p1na.futureelectronics.com/p/analog--regulators-reference--linear-regulators/bd33ka5wf-e2-rohm-6017578
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=BD33KA5WF-E2&field4=ROHM&field18=https://p1na.futureelectronics.com/p/analog--regulators-reference--linear-regulators/bd33ka5wf-e2-rohm-6017578
ROHM BD33KA5WF-E2 - Technical Attributes
| Input Voltage-Min: | 2.3V |
| Input Voltage-Max: | 5.5V |
| Output Voltage Fixed: | 3.3V |
| Dropout Voltage-Max: | 0.2V |
| Output Current-Max: | 500mA |
| Rated Power: | 687.6mW |
| Tolerance (%): | ±1% |
| Operating Temp Range: | -40°C to +105°C |
| Regulator Topology: | Fixed |
| No. of Outputs: | Single |
| Load Regulation: | 75mV |
| Line Regulation: | 35mV |
| Package Style: | SOP-8 |
| Mounting Method: | Surface Mount |
Features & Applications
The BD33KA5WF-E2 is a Part of BD33KA5 Series 3.3 V 500 mA Linear Regulators for Local Power Supplies available in SOP-8 surface mount package.It has a operating temperature ranging from -40 to 105°C.
This series can be used for a broad spectrum of applications ranging from TVs and car audio systems to HDDs, PCs and DVDs.
Features:
- Maximum output current : 500 mA
- Output voltage precision :±1%
- Low-saturation voltage with PMOS output : 0.12 V Typ (Io=200 mA)
- Built-in over-curretn protection circuit
- Built-in thermal shutdown circuit
- Shutdown swith
- TO252-3, To252-5 and SOP8 package line up
- Operaing temperature range : -40°C to 105°C
- Ceramic capacitor compatible (recommended capacitance : 1µF or greater)
Applications:
- Microcontroller and all electronic devices that use logic circuits
View the BD33KA5 Series of Linear Regulators
Available Packaging
Package Qty:
2500 per Reel
Package Style:
SOP-8
Mounting Method:
Surface Mount
