Référence fabricant

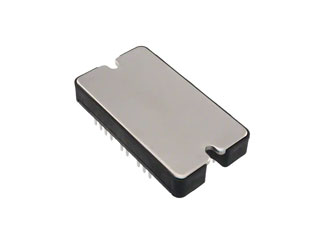

APTM50HM65FT3G
Full-Bridge 500V 78mOhm Power Module MOSFET-SP-3
| | |||||||||||
| | |||||||||||
| Nom du fabricant: | Microchip | ||||||||||
| Emballage standard: | Product Variant Information section Emballages disponiblesQté d'emballage(s) :1 par Tube Style d'emballage :SP-3 Méthode de montage :Chassis Mount | ||||||||||
| Code de date: | |||||||||||
Microchip APTM50HM65FT3G - Spécifications du produit
Informations de livraison:
ECCN:
Informations PCN:
Revision History:January 17, 2023: Issued initial notification.August 04, 2023: Issued final notification. Attached the Qualification Report. Updated parts list to remove catalog part numbers APTGF50H60T3G, APTGF90H60T3G, CMTDGF50H603G, and CMTDGF90H603G based on the updated scope. Provided estimated first ship date to be on August 29, 2023.Description of Change:Qualification of MP3B as new assembly site for selected Microsemi APTxx, CMxx, and MSCxx device families available in SP3F package.Pre and Post Change Summary: See attachedImpacts to Data Sheet:NoneChange Impact:NoneReason for Change:To improve on time delivery performance by qualifying MP3B as a new assembly site.Change Implementation Status:In ProgressEstimated First Ship Date:August 29, 2023 (date code: 2335)Note: Please be advised that after the estimated first ship date customers may receive pre and post change parts.Time Table Summary: See attached
Description of Change:Qualification of MP3B as new assembly site for selected Microsemi APTxx, CMxx, and MSCxx device families available in SP3F package.Reason for Change:To improve on time delivery performance by qualifying MP3B as a new assembly site.Change Implementation Status:In ProgressEstimated Qualification Completion Date:May 2023
Statut du produit:
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=fr&field2=APTM50HM65FT3G&field4=Microchip&field18=https://p1na.futureelectronics.com/p/discretes--transistors--mosfets/aptm50hm65ft3g-microsemi-1034606
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=fr&field2=APTM50HM65FT3G&field4=Microchip&field18=https://p1na.futureelectronics.com/p/discretes--transistors--mosfets/aptm50hm65ft3g-microsemi-1034606
Microchip APTM50HM65FT3G - Caractéristiques techniques
| Product Status: | Active |
| Fet Type: | N-Ch |
| No of Channels: | 4 |
| Drain-to-Source Voltage [Vdss]: | 500V |
| Drain-Source On Resistance-Max: | 78mΩ |
| Rated Power Dissipation: | 390W |
| Qg Gate Charge: | 140nC |
| Gate-Source Voltage-Max [Vgss]: | 30V |
| Drain Current: | 51A |
| Turn-on Delay Time: | 21ns |
| Turn-off Delay Time: | 75ns |
| Rise Time: | 38ns |
| Fall Time: | 93ns |
| Operating Temp Range: | -40°C to +150°C |
| Gate Source Threshold: | 5V |
| Technology: | SiC |
| Input Capacitance: | 7000pF |
| Style d'emballage : | SP-3 |
| Méthode de montage : | Chassis Mount |
Emballages disponibles
Qté d'emballage(s) :
1 par Tube
Style d'emballage :
SP-3
Méthode de montage :
Chassis Mount
