Manufacturer Part #
LAA125S

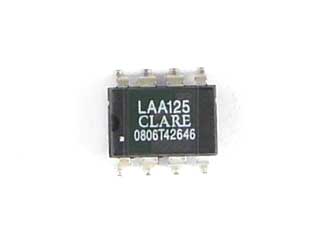

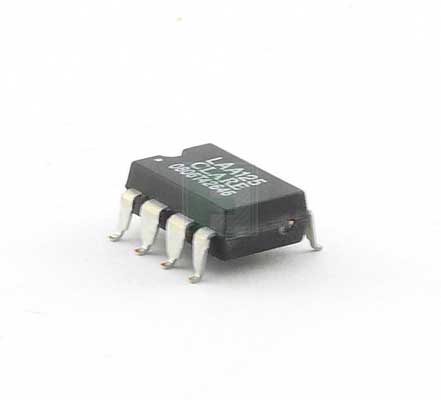

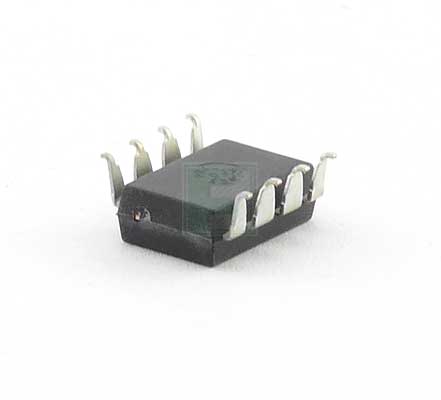

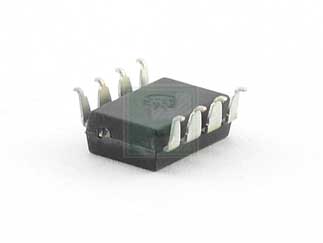

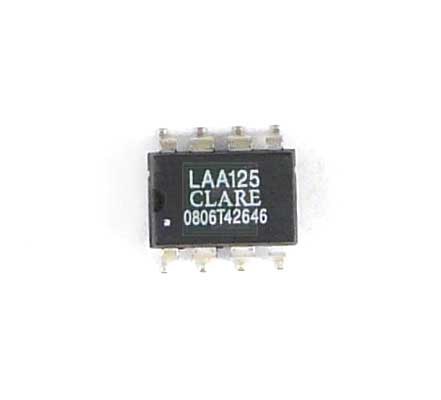

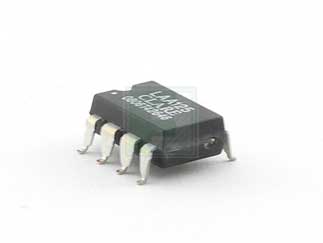

LAA125S Series 170 mA 350 V Dual Single-Pole NO OptoMOS Relay - 8 Pin SMT
| | |||||||||||
| | |||||||||||
| Mfr. Name: | Littelfuse | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:50 per Tube Package Style:SMD-8 Mounting Method:Surface Mount | ||||||||||
| Date Code: | |||||||||||
Littelfuse LAA125S - Product Specification
Shipping Information:
ECCN:
PCN Information:
Description:Following the PCN EIC-1138, dated July 31st, 2024- Littelfuse IXYS Integrated Circuits Division (ICD) would like to inform you about additional pat numbers affected by this change.As a result, we need to remove the UL 94 V-0 flammability rating from the datasheets for the part numbers.Littelfuse would like to inform you that although components shipped from Littelfuse are considered to not have a UL 94 V-0 flammability rating, they remain fully compliant with the certifications outlined in their respective data sheets.
Part Status:
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=LAA125S&field4=Littelfuse&field18=https://p1na.futureelectronics.com/p/electromechanical--relays--solid-state-relays/laa125s-littelfuse-2345171
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=LAA125S&field4=Littelfuse&field18=https://p1na.futureelectronics.com/p/electromechanical--relays--solid-state-relays/laa125s-littelfuse-2345171
Littelfuse LAA125S - Technical Attributes
| Contact Form: | DPST (2 Form A) |
| Output Voltage: | 350V |
| On-state Resistance-Max: | 16Ω |
| Input Voltage: | 1.2V |
| Input Current: | 50mA |
| Contact Current-Max: | 170mA |
| Isolation Voltage-RMS: | 3750V |
| Capacitance: | 3pF |
| Operating Temp Range: | -40°C to +85°C |
| Package Style: | SMD-8 |
| Mounting Method: | Surface Mount |
Available Packaging
Package Qty:
50 per Tube
Package Style:
SMD-8
Mounting Method:
Surface Mount
