Référence fabricant
1-794065-0

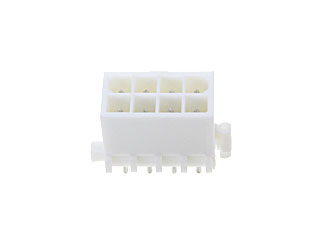

Mini-Universal MATE-N-LOK 8 Position Dual Row Through-Hole Straight Pin Header
|
|
|||||||||||
|
|
|||||||||||
| Nom du fabricant: | TE Connectivity | ||||||||||
| Emballage standard: |
Product Variant Information section
Emballages disponiblesQté d'emballage(s) :1 par Bag Méthode de montage :Through Hole |
||||||||||
| Code de date: | 2538 | ||||||||||
TE Connectivity 1-794065-0 - Spécifications du produit
Informations de livraison:
Code HTS:
ECCN:
Informations PCN:
General Product Description: Mini UMNL - Header AssemblyDescription of ChangesAdding an additional resin (Nylon) option for this product. Necessary qualification tests as per the Product specification were performed and passed. Reason for Changes:Standardizing our global resins and adding an additional resin option to help avoid global shortages and interruptions in supplyFirst Ship Date of Changed Items (Changed Parts Only): 25-SEP-2023
Statut du produit:
-
https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=fr&field2=1-794065-0&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/fr/p/interconnect--connectors-pcb--header-plug-board-mount/1-794065-0-te-connectivity-4497657
-
https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=fr&field2=1-794065-0&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/fr/p/interconnect--connectors-pcb--header-plug-board-mount/1-794065-0-te-connectivity-4497657
TE Connectivity 1-794065-0 - Caractéristiques techniques
| No of Positions: | 8 |
| Pitch: | 4.14 mm |
| Style/Orientation: | Straight Header/Plug |
| Termination: | Solder |
| Operating Temp Range: | -55°C to +105°C |
| Voltage Rating: | 600V |
| Current Rating: | 9.5A |
| Contact Plating: | Tin |
| Material: | Nylon |
| No of Rows: | 2 |
| Gender: | Male |
| Type: | Pin Headers |
| Mating Type: | Locking Tab |
| Color: | White |
| Méthode de montage : | Through Hole |
Emballages disponibles
Qté d'emballage(s) :
1 par Bag
Méthode de montage :
Through Hole
