Référence fabricant
AL8400SE-7

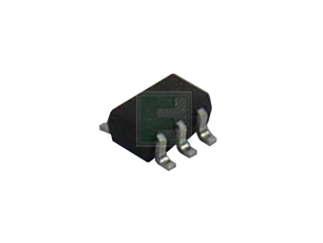

AL8400 Series 18 V 300 kHz Surface Mount Linear LED Driver Controller - SOT-353
| | |||||||||||
| | |||||||||||
| Nom du fabricant: | Diodes Incorporated | ||||||||||
| Emballage standard: | Product Variant Information section Emballages disponiblesQté d'emballage(s) :3000 par Reel Style d'emballage :SOT-353 (SC-88A, SC-70-5) Méthode de montage :Surface Mount | ||||||||||
| Code de date: | |||||||||||
Diodes Incorporated AL8400SE-7 - Spécifications du produit
Informations de livraison:
ECCN:
Informations PCN:
Statut du produit:
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=fr&field2=AL8400SE-7&field4=Diodes Incorporated&field18=https://p1na.futureelectronics.com/p/semiconductors--analog--drivers--led-drivers-linear-mode/al8400se-7-diodes-incorporated-6004138
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=fr&field2=AL8400SE-7&field4=Diodes Incorporated&field18=https://p1na.futureelectronics.com/p/semiconductors--analog--drivers--led-drivers-linear-mode/al8400se-7-diodes-incorporated-6004138
Diodes Incorporated AL8400SE-7 - Caractéristiques techniques
| Supply Voltage: | 2.2V to 18V |
| Output Voltage: | 0.2V to 18V |
| Switching Frequency-Max: | 300kHz |
| Style d'emballage : | SOT-353 (SC-88A, SC-70-5) |
| Méthode de montage : | Surface Mount |
Fonctionnalités et applications
The AL8400SE-7 is a part of AL8400 Product series of 18 V 300 kHz Linear LED Driver Controller in a Surface Mounting feature and its Available in a SOT-353 package. Its Operating Temperature ranging between -40 °C to 125 °C.
The AL8400 is a 5-terminal adjustable Linear LED driver-controller offering excellent temperature stability and output handling capability. The AL8400 simplifies the design of linear and isolated LED drivers. With its low 200mV current sense 2V FB pin, it controls the regulation of LED current with minimal power dissipation when compared to traditional linear LED drivers. This makes it ideal for medium to high current LED driving
Product Features:
- Low reference voltage (VFB = 0.2 V)
- Temperature range is -40 °C to 125 °C
- 3% Reference voltage tolerance at 25 °C
- Low temperature drift
- 0.2 V to 18 V open-collector output
- High power supply rejection: (> 45 dB at 300 kHz)
- Available in Green molding (no Br, Sb) with lead free finish
Applications:
- Isolated offline LED converters
- Linear LED driver
- LED signs
- Instrumentation illumination
Emballages disponibles
Qté d'emballage(s) :
3000 par Reel
Style d'emballage :
SOT-353 (SC-88A, SC-70-5)
Méthode de montage :
Surface Mount
