Infineon | FP100R12KT4BOSA1

Manufacturer Part #

FP100R12KT4BOSA1

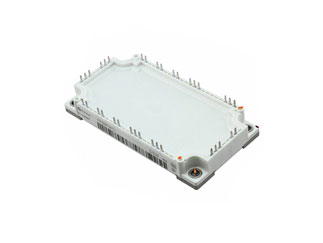

FP100R12KT4 Series 1200 V 100 A 515 W Chassis Mount EconoPIM™ IGBT Module

ECAD Model:
Mfr. Name: Infineon
Standard Pkg:
Product Variant Information section
Date Code:
Product Specification Section
Infineon FP100R12KT4BOSA1 - Technical Attributes
Attributes Table
CE Voltage-Max: 1200V
Power Dissipation-Tot: 515W
Gate - Emitter Voltage: 20V
Pulsed Collector Current: 200A
Collector - Emitter Saturation Voltage: 1.75V
Turn-on Delay Time: 0.16µs
Turn-off Delay Time: 0.33µs
Qg Gate Charge: 800nC
Leakage Current: 100nA
Input Capacitance: 6.3nF
Operating Temp Range: -40°C to +150°C
No of Terminals: 35
Package Style:  Module
Mounting Method: Chassis Mount
Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Stock:Factory Stock:
0
Factory Lead Time:
10 Weeks
Minimum Order:
10
Multiple Of:
10
Total
$1,140.00
USD
Quantity
Unit Price
1
$115.61
4
$114.00
15
$112.49
25
$111.91
50+
$110.10
