AZ Displays | ATM0177B3A

Manufacturer Part #

ATM0177B3A

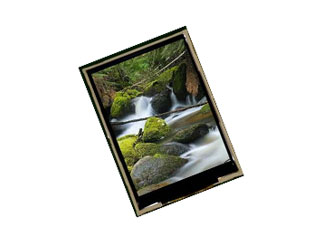

1.77“Display MCU 128x160 450 Nits TFT LCD Panel

ECAD Model:
Mfr. Name: AZ Displays
Standard Pkg:
Product Variant Information section
Date Code:
Product Specification Section
AZ Displays ATM0177B3A - Technical Attributes
Attributes Table
Diagonal Size: 1.77in
Resolution: 128 x 160
Display Mode: Transmissive
Backlight: LED
Viewing Angle: 70°
Operating Temp Range: -20°C to +70°C
Contrast Ratio: 500
Active Area: 28.032 x 35.04mm
Interface Type: SPI
Response Time: 30ms
Mounting Method: Panel Mount
Features & Applications

This specification includes the outside dimensions, optical characteristics, electrical characteristics, interface, controller commands, etc. of the standard LCD module.

Features:

  • 128 x RGB x 160
  • Portrait Mode
  • LED Backlight
  • 4-wire SPI Interface

Specifications:

  • Outline Dimensions: 34.70 X 46.7 X 4.0 mm
  • Active Area: 28.032 X 35.04 mm
  • Interface: SPI
  • Contrast: 500:1
  • Brightness: 450 nits
  • Viewing Angle(LR, UD): -1  -0.666666666666667
  • Viewing Direction: 6 O'clock
  • Operating Temperature: -10C to +60C
  • Storage Temperature: -20C to +70C
  • Bonding Type: COG

View our available line of ATM0xx Series of Active Matrix Displays

Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Stock:Factory Stock:
0
Factory Lead Time:
16 Weeks
Minimum Order:
1000
Multiple Of:
1000
tariff icon
Tariff charges may apply if shipping to the United States. An estimate of tariff charges will be calculated at checkout.
Total
$7,840.00
USD
Quantity
Unit Price
1,000+
$7.84
