Manufacturer Part #

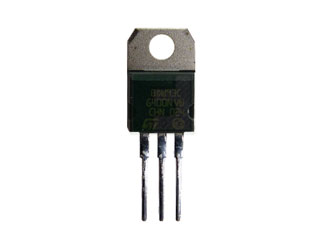

BDW93C
BD Series NPN 80 W 100 V 12 A Epitaxial Silicon Transistor - TO-220-3
| | |||||||||||
| | |||||||||||
| Mfr. Name: | STMicroelectronics | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:50 per Tube Package Style:TO-220-3 (TO-220AB) Mounting Method:Through Hole | ||||||||||
| Date Code: | |||||||||||
Product Specification Section
STMicroelectronics BDW93C - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=BDW93C&field4=STMicroelectronics&field18=https://p1na.futureelectronics.com/fr/p/semiconductors--discretes--transistors--bipolar-transistors/bdw93c-stmicroelectronics-6034833
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=BDW93C&field4=STMicroelectronics&field18=https://p1na.futureelectronics.com/fr/p/semiconductors--discretes--transistors--bipolar-transistors/bdw93c-stmicroelectronics-6034833
STMicroelectronics BDW93C - Technical Attributes
Attributes Table
| Polarity: | NPN |
| Type: | Darlington |
| CE Voltage-Max: | 100V |
| Collector Current Max: | 12A |
| Power Dissipation-Tot: | 80W |
| DC Current Gain-Min: | 100 |
| Package Style: | TO-220-3 (TO-220AB) |
| Mounting Method: | Through Hole |
Features & Applications
The BDW93C is a silicon Epitaxial-Base NPN power transistor in monolithic Darlington configuration mounted in Jedec TO-220 plastic package. It is intented for use in power linear and switching applications. The complementary PNP type is BDW94C. Also BDW94B is a PNP type.
Features:
- Complementry PNP - NPN Devices
- Interated Antiparallel Collector-Emitter Diode
Applications:
- Linear and Switching Inductrial Equipment
Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Lead Time:
14 Weeks
Quantity
Unit Price
50
$0.36
200
$0.35
750
$0.34
1,500
$0.335
3,750+
$0.325
Product Variant Information section
Available Packaging
Package Qty:
50 per Tube
Package Style:
TO-220-3 (TO-220AB)
Mounting Method:
Through Hole
