Manufacturer Part #
AS5172B-HTSM

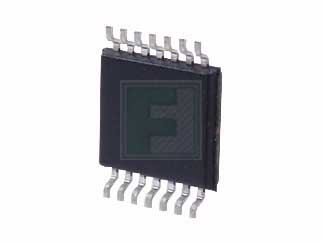

AS5172B Series 12 V 0° to 360° SMT Magnetic Position Sensor - TSSOP-14
| | |||||||||||
| | |||||||||||
| Mfr. Name: | ams OSRAM | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:500 per Reel Package Style:TSSOP-14 Mounting Method:Surface Mount | ||||||||||
| Date Code: | |||||||||||
Product Specification Section
ams OSRAM AS5172B-HTSM - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
Part Status:
Active
Active
ams OSRAM AS5172B-HTSM - Technical Attributes
Attributes Table
| Type: | Angular |
| Supply Voltage: | 4V to 12V |
| Supply Current: | 80mA |
| Rotation Angle: | 0° to 360° |
| Power Dissipation: | 377mW |
| Operating Temp Range: | -40°C to +150°C |
| Storage Temperature Range: | -55°C to +125°C |
| No of Terminals: | 14 |
| Moisture Sensitivity Level: | 3 |
| Package Style: | TSSOP-14 |
| Mounting Method: | Surface Mount |
Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Lead Time:
22 Weeks
Quantity
Unit Price
500
$3.08
1,000+
$3.04
Product Variant Information section
Available Packaging
Package Qty:
500 per Reel
Package Style:
TSSOP-14
Mounting Method:
Surface Mount
