Manufacturer Part #

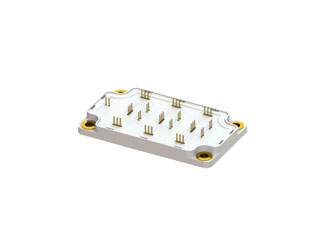

APTM100TA35SCTPG
APTM100 Series 1000 Vds 22 A 420 mOhm at 11A 390 W N-Channel 3-Phase Bridge
| | |||||||||||
| | |||||||||||
| Mfr. Name: | Microchip | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:1 per Bulk Package Style:Module Mounting Method:Chassis Mount | ||||||||||
| Date Code: | |||||||||||
Product Specification Section
Microchip APTM100TA35SCTPG - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
File
Date
Assembly Site Change
09/05/2023 Details and Download
Assembly Site Change
01/19/2023 Details and Download
Description of Change:Qualification of MP3B as a new assembly site for selected Microsemi products available in SP6P package.Reason for Change:To improve manufacturability by qualifying MP3B as a new assembly site.Change Implementation Status:In ProgressEstimated Qualification Completion Date:May 2023
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=APTM100TA35SCTPG&field4=Microchip&field18=https://p1na.futureelectronics.com/p/semiconductors--discretes--transistors--mosfets/aptm100ta35sctpg-microchip-8032091
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=APTM100TA35SCTPG&field4=Microchip&field18=https://p1na.futureelectronics.com/p/semiconductors--discretes--transistors--mosfets/aptm100ta35sctpg-microchip-8032091
Microchip APTM100TA35SCTPG - Technical Attributes
Attributes Table
| Product Status: | Active |
| Fet Type: | N-Ch |
| No of Channels: | 6 |
| Drain-to-Source Voltage [Vdss]: | 1000V |
| Drain-Source On Resistance-Max: | 420mΩ |
| Rated Power Dissipation: | 390W |
| Qg Gate Charge: | 186nC |
| Gate-Source Voltage-Max [Vgss]: | 30V |
| Drain Current: | 22A |
| Turn-on Delay Time: | 18ns |
| Turn-off Delay Time: | 155ns |
| Rise Time: | 12ns |
| Fall Time: | 40ns |
| Operating Temp Range: | -40°C to +150°C |
| Gate Source Threshold: | 5V |
| Technology: | SiC |
| Input Capacitance: | 5.2nF |
| Package Style: | Module |
| Mounting Method: | Chassis Mount |
Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Lead Time:
20 Weeks
Quantity
Unit Price
1
$357.47
3
$351.88
5
$349.31
10
$345.86
20+
$340.45
Product Variant Information section
Available Packaging
Package Qty:
1 per Bulk
Package Style:
Module
Mounting Method:
Chassis Mount
