Référence fabricant
IR11662STRPBF

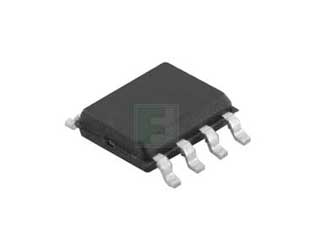

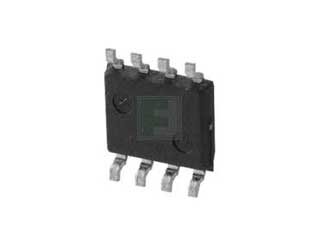

IR11662S Series 18 V 4 A Advanced SmartrectifierTM Control IC - SOIC-8
|
|
|||||||||||
|
|
|||||||||||
| Nom du fabricant: | Infineon | ||||||||||
| Emballage standard: |
Product Variant Information section
Emballages disponiblesQté d'emballage(s) :2500 par Reel Style d'emballage :SOIC-8 Méthode de montage :Surface Mount |
||||||||||
| Code de date: | |||||||||||
Infineon IR11662STRPBF - Spécifications du produit
Informations de livraison:
Code HTS:
ECCN:
Informations PCN:
Detailed change information:Subject Introduction of an additional wafer production site at Vanguard International Semiconductor Corporation - Fab2 for several HVIC GEN5, GEN5.2 productsReason:The wafer production of the affected products will be extended to Vanguard International Semiconductor Corporation - Fab2, toensure supply continuity
Statut du produit:
-
https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=fr&field2=IR11662STRPBF&field4=Infineon&field18=https://p1na.futureelectronics.com/fr/p/semiconductors--analog--regulators-reference--switching-regulators/ir11662strpbf-infineon-8418105
-
https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=fr&field2=IR11662STRPBF&field4=Infineon&field18=https://p1na.futureelectronics.com/fr/p/semiconductors--analog--regulators-reference--switching-regulators/ir11662strpbf-infineon-8418105
Infineon IR11662STRPBF - Caractéristiques techniques
| Topology: | Flyback |
| Input Voltage: | 11.3V to 20V |
| Output Current-Max: | 1A |
| Switching Frequency-Max: | 500kHz |
| Style d'emballage : | SOIC-8 |
| Méthode de montage : | Surface Mount |
Fonctionnalités et applications
The IR11662STRPBF is a smart secondary-side driver IC designed to drive N-Channel power MOSFETs used as synchronous rectifiers in isolated Flyback and resonant half-bridge converters.
Features:
- Secondary side high speed SR controller
- DCM, CrCM flyback and Resonant half-bridge topologies
- 200 V proprietary IC technology
- Max 500KHz switching frequency
- Anti-bounce logic and UVLO protection
- 4 A peak turn off drive current
- Micropower start-up & ultra low quiescent current
- 10.7 V gate drive clamp
- 50 ns turn-off propagation delay
- Vcc range from 11.3V to 20V
- Direct sensing of MOSFET drain voltage
- Enable function synchronized with MOSFET VDS transition
- Cycle by Cycle MOT Check Circuit prevents multiple false trigger GATE pulses
- Lead-free
- Compatible with 0.3W Standby, Energy Star, CECP, etc.
Applications:
- LCD & PDP TV
- Telecom SMPS
- AC-DC adapters
- ATX SMPS
- Server SMPS
Emballages disponibles
Qté d'emballage(s) :
2500 par Reel
Style d'emballage :
SOIC-8
Méthode de montage :
Surface Mount
