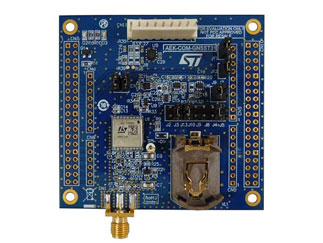

Image for illustration purposes only,
refer to technical specifications

Manufacturer Part #

AEK-COM-GNSST31

GNSS Evaluation Board Based on Teseo-LIV3F for SPC5 Microcontrollers

AEK-COM-GNSST31 Datasheet
ECAD Model: Convert this file for your ECAD tool by downloading the free Library Loader. Learn more about ECAD model.
Mfr. Name:	STMicroelectronics
Standard Pkg:	Product Variant Information section Available Packaging Package Qty: 1 per Box
Date Code:	2009

STMicroelectronics AEK-COM-GNSST31 - Technical Attributes

Application Type:	Dev Tool
Core Supported:	TESEO-LIV3F

Features & Applications

The AEK-COM-GNSST31 evaluation board is based on the certified Teseo-LIV3F global navigation satellite system (GNSS) module with embedded TeseoIII single die standalone positioning receiver IC. The tiny, affordable, and easy-to use module guarantees superior accuracy and reduced time to first fix (TTFF) thanks to the on-board 26 MHz temperature compensated crystal oscillator (TCXO) and dedicated 32 KHz real-time clock (RTC) oscillator. The evaluation package is used in conjunction with the X-CUBE-GNSS1 firmware to provide the necessary acquisition, tracking, navigation and data output functionality without external memory support. The AEK-COM-GNSST31 evaluation board can be readily connected with an SPC5 MCU for automotive application development as part of the AutoDevKit™ initiative.

Features:

?Sensitivity: -162 dBm indoor (tracking mode)
?Interfaces: • UART and I²C ports
• Configurable digital I/O timepulse
• EXTINT input for wakeup

?NMEA protocol
?Assisted GNSS: • Predictive autonomous
• Predictive server-based
• Real-time server-based

?Compatible with SPC5
?LNA and SAW filter on the RF path
?SMA female antenna connector

?Battery holder
?Highly compact design: 70 x 65 mm
?Operating supply voltage: 3.3 - 5 V
?Ambient temperature: -40/+85 °C
?Part of the AutoDevKit™ initiative
?RoHS and WEEE compliant
