ROHM | RS1E170GNTB

Manufacturer Part #

RS1E170GNTB

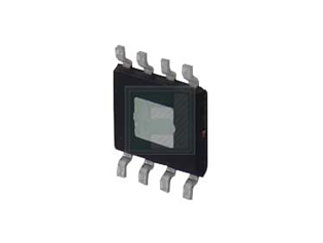

N-Channel 30 V 6.7 mOhm 23 W Surface Mount Power Mosfet - HSOP-8

ECAD Model:
Mfr. Name: ROHM
Standard Pkg:
Product Variant Information section
Date Code:
Product Specification Section
ROHM RS1E170GNTB - Technical Attributes
Attributes Table
Fet Type: N-Ch
No of Channels: 1
Drain-to-Source Voltage [Vdss]: 30V
Drain-Source On Resistance-Max: 6.7mΩ
Rated Power Dissipation: 23W
Qg Gate Charge: 12nC
Gate-Source Voltage-Max [Vgss]: 20V
Drain Current: 40A
Turn-on Delay Time: 10ns
Turn-off Delay Time: 27ns
Rise Time: 4.8ns
Fall Time: 3.7ns
Gate Source Threshold: 2.5V
Input Capacitance: 720pF
Package Style:  HSOP-8
Mounting Method: Surface Mount
Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Stock:Factory Stock:
0
Factory Lead Time:
16 Weeks
Minimum Order:
2500
Multiple Of:
2500
Total
$600.00
USD
Quantity
Unit Price
2,500
$0.24
10,000
$0.235
37,500+
$0.23
